Windsurf Fins Knowledge
Your Ride, Our Gear
Water is about 850 times the density of air, which explains why a relatively small fin can generate enormous forces and is so critical to how a windsurf board performs.
Lift
A fin generates lift -- a force perpendicular to the direction of water flow -- from a combination of speed and angle of attack.
- Without lift, the board would slide sideways uncontrollably
- Lift opposes the sideways force of the sail, keeping you on course
- More fin area or speed means more lift -- but also more drag
- The right balance between lift and drag defines how a fin feels
Length
Fin length is the single most important sizing decision.
- Too short -- not enough lift; the board spins out or feels loose and uncontrollable
- Too long -- excessive lift; the board lifts at the tail, becomes hard to control and stiff to manoeuvre
Plan Shape
The outline of the fin (viewed from above) determines its character.
- Race fins -- upright profile for maximum drive and early planing
- Manoeuvre fins -- swept back for quick release and tight turns

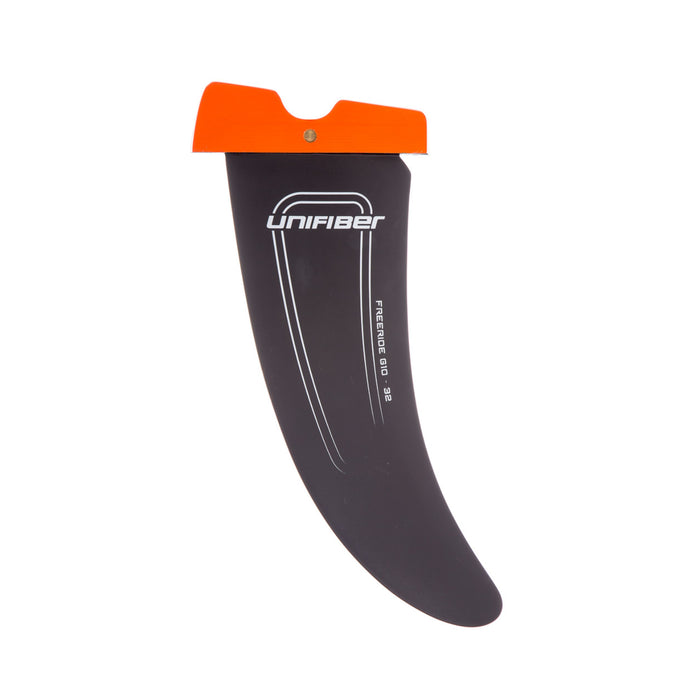

- Freeride fins -- slight curve, balancing stability with manoeuvrability
The universal standard. A long slot that accepts a wide range of fin sizes. Common on freeride and entry-level boards. Allows fore/aft positioning adjustment.
Tapered base for a secure, vibration-free fit. Popular on freeride and freerace boards. Quick installation with a single bolt from the deck.
Rectangular base with two bolts from underneath. Stronger and stiffer connection for high-speed sailing. Used on race and slalom boards.
Extended version of the Tuttle box with a deeper base. Provides maximum rigidity for large race and formula fins. Two bolts from underneath.
A compact, tool-free system using a sliding plate. Quick fin changes on the water. Found on some freeride and wave boards.
Similar to US Box but shorter. Allows limited fore/aft adjustment. Common on smaller wave and freestyle boards where a compact box saves weight.
The cross-sectional profile of the fin. Determines how water flows around it -- thicker foils generate more lift at low speed; thinner foils reduce drag at high speed.
The total surface area of the fin. More area provides more lift and grip but also increases drag. Larger sailors or sails generally need more area.
The width of the fin measured from leading edge to trailing edge. A wider chord increases lift and stability; a narrower chord reduces drag.
How much the fin bends under load. Stiffer fins drive harder upwind and suit high speeds; softer flex is more forgiving and comfortable in chop.
Controlled deformation where the tip twists relative to the base under pressure. Helps maintain control at high speed by progressively reducing the angle of attack at the tip.
The backward sweep angle of the fin. More rake aids manoeuvrability and loosens the feel; less rake maximises upwind drive and straight-line stability.
The front edge of the fin that first contacts the water. Its profile affects how smoothly the fin enters the flow and resists ventilation.
The rear edge where water leaves the fin. A sharp trailing edge reduces turbulence and drag; a thicker one adds durability but costs efficiency.
Construction Types
Affordable and durable. Glass fibres bonded with vinylester resin. Good all-round performance with moderate flex. Ideal for freeride and recreational use.
Industrial-grade glass-epoxy laminate machined to precise foil profiles. Excellent stiffness-to-weight ratio. Consistent quality and very durable. Popular for slalom and freerace.
Pre-impregnated carbon fibre cured under pressure and heat. Lightest and stiffest option with the best power transmission. Used in racing and performance freeride.
Production Methods
Dry fibres are placed in a closed mould and resin is injected under pressure. Produces consistent, high-quality fins with smooth surfaces at scale.
Computer-controlled machining from solid G10 or carbon blanks. Delivers exact foil profiles with tight tolerances. Each fin is identical to the design file.
Hand-laid carbon or composite, vacuum-bagged and oven-cured. Allows bespoke flex patterns and foil shapes. Small-batch production for elite performance.
