Aluminium HD 180-230
Built to Take a Beating. Ready for the Long Haul.

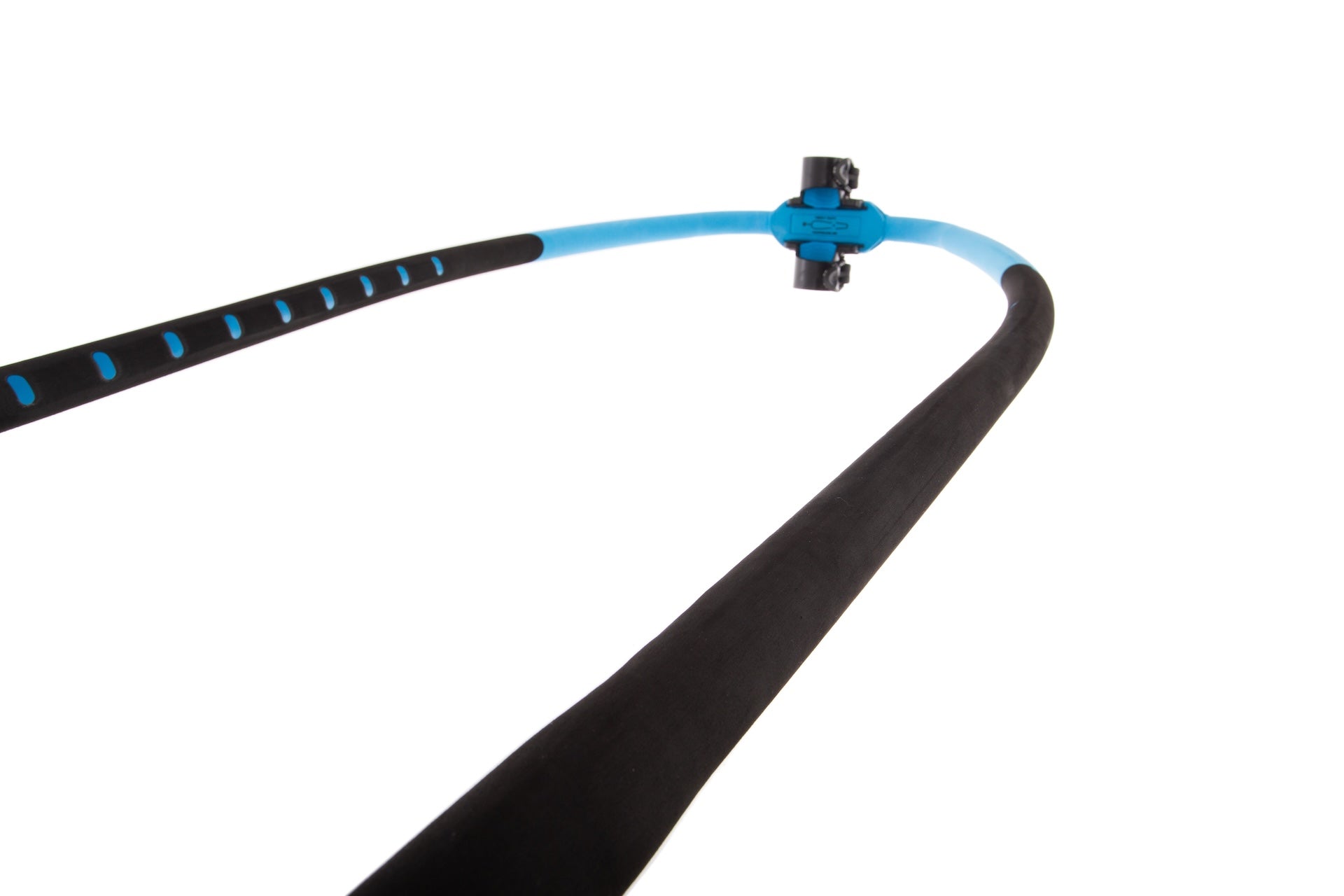

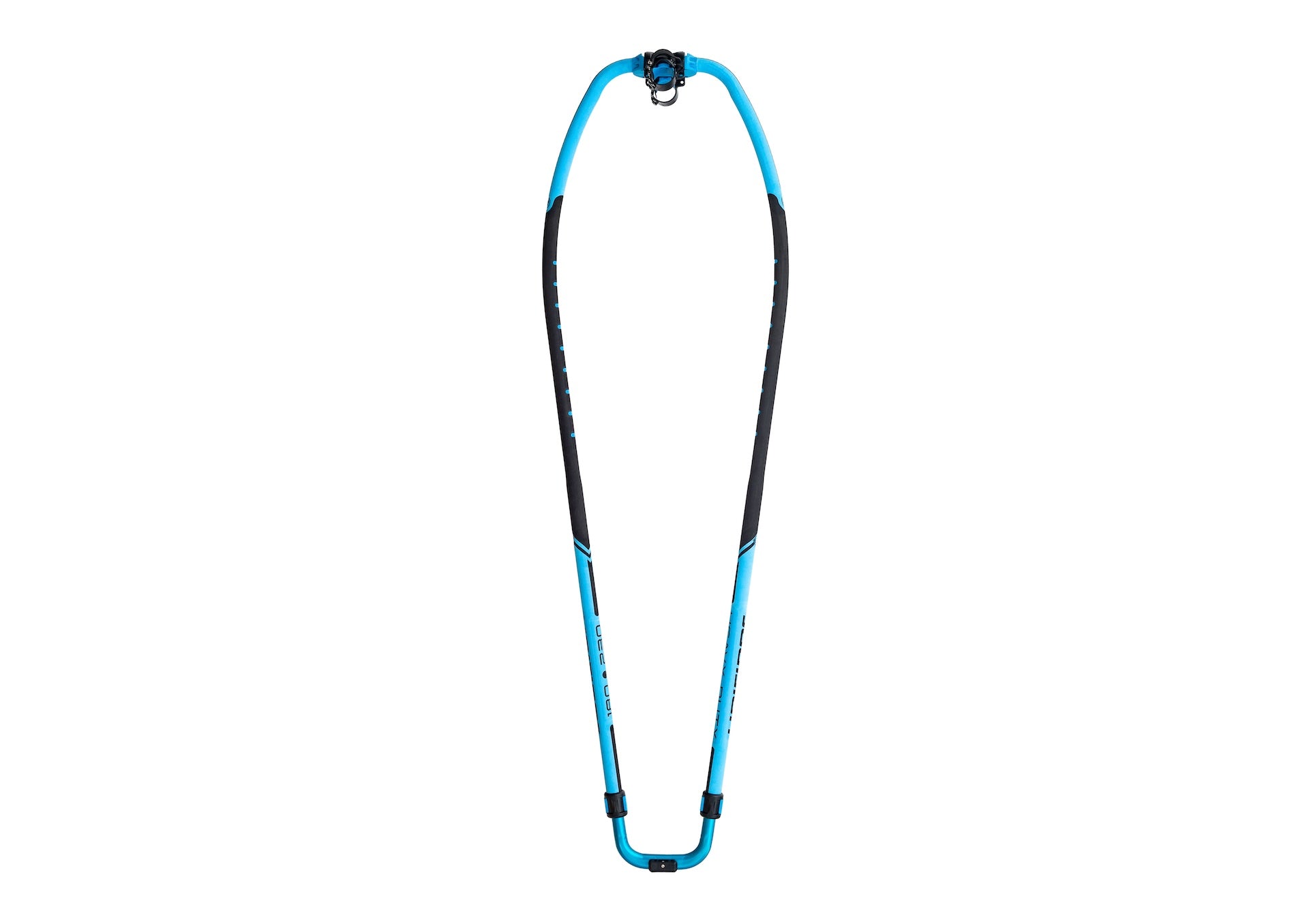

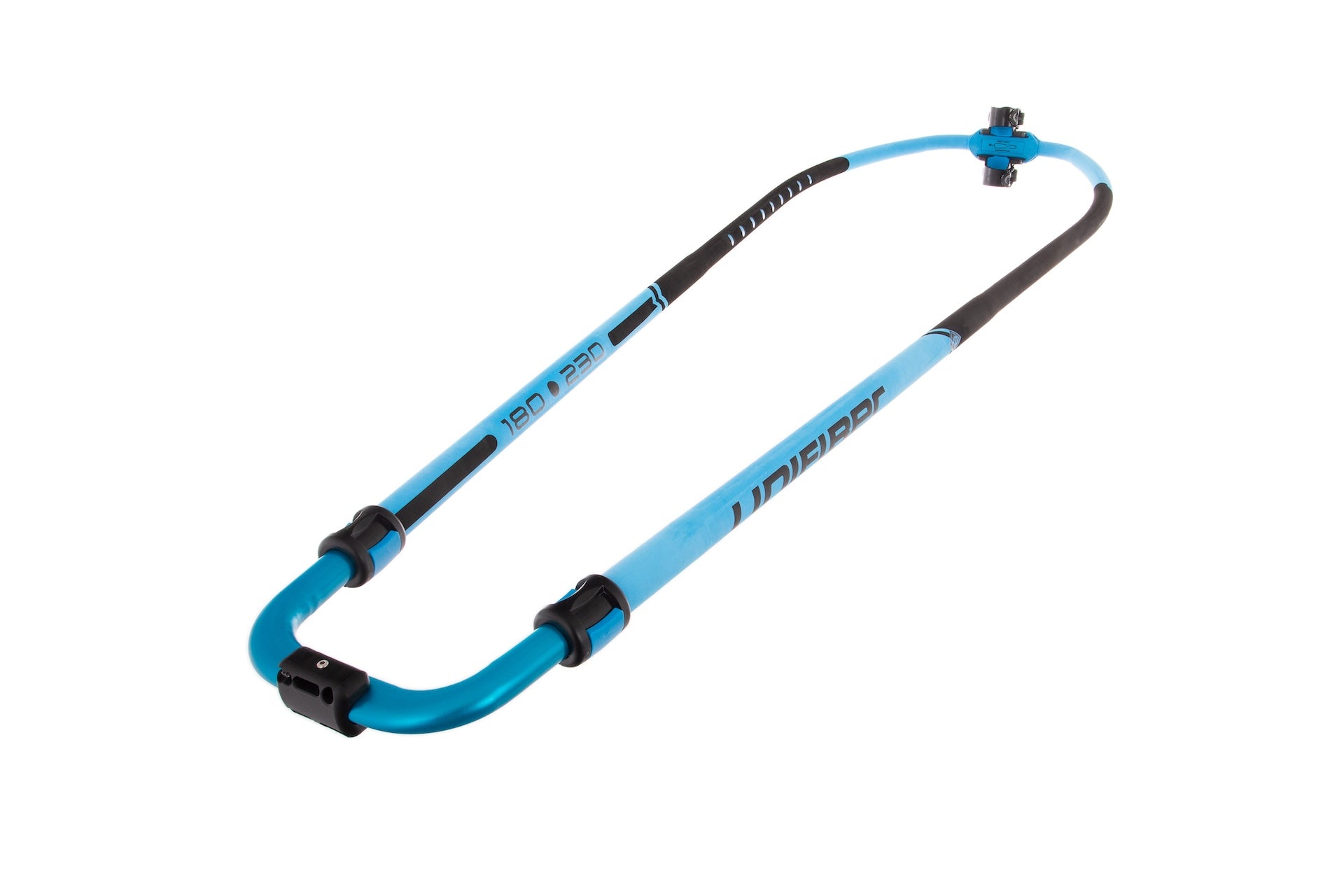

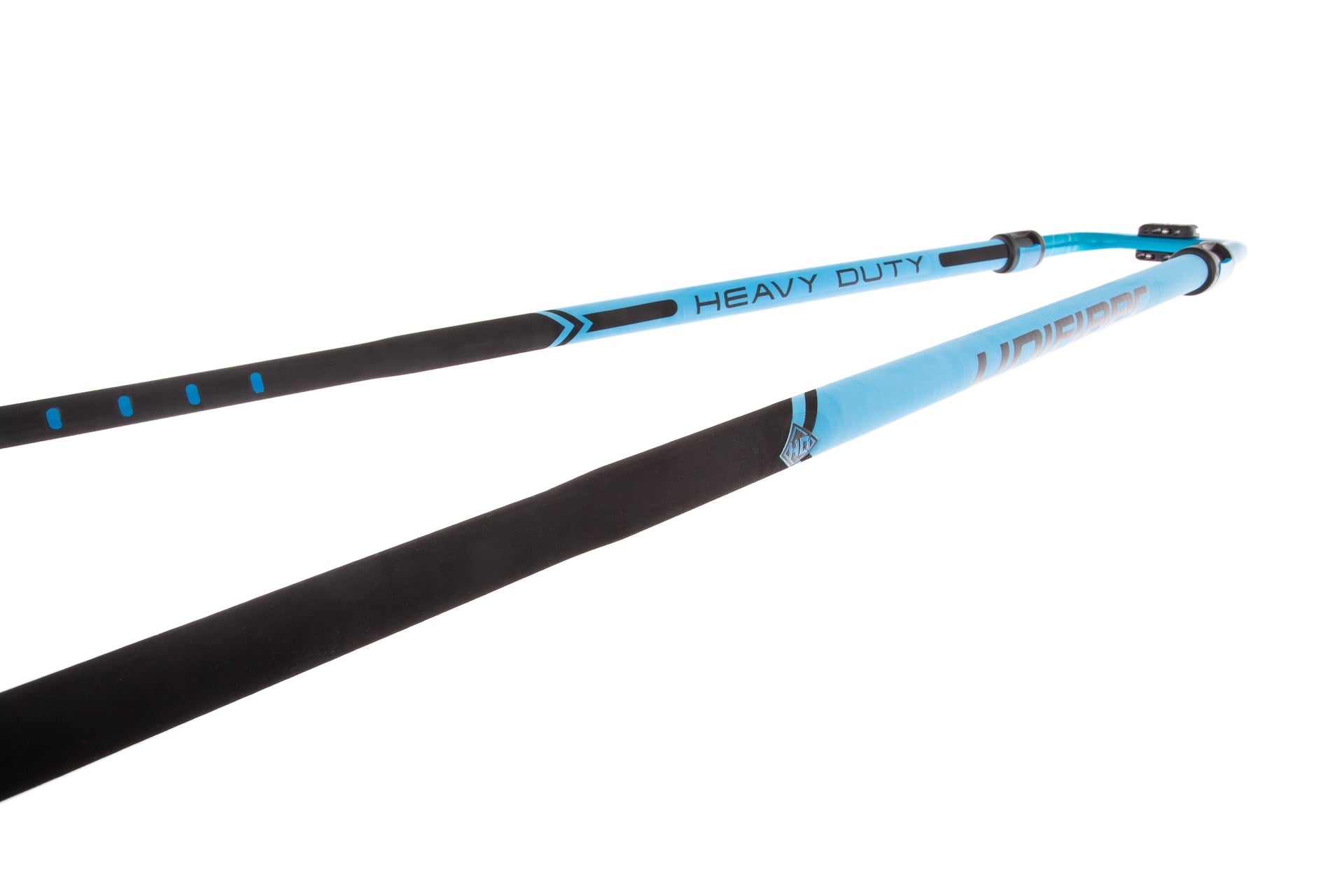

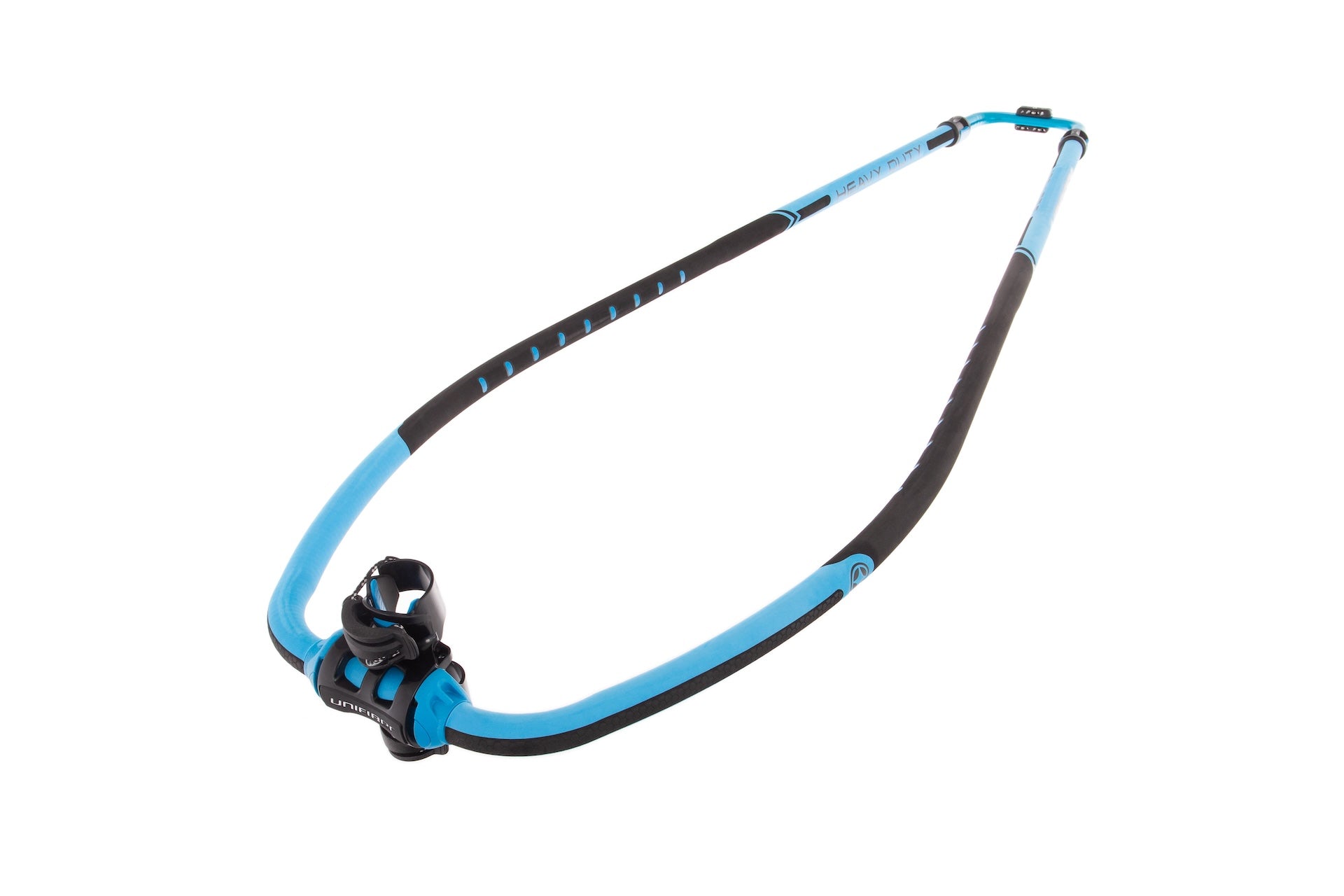

When you’re pushing hard, you need gear that keeps up. The Unifiber Aluminium HD Monocoque Boom delivers serious durability, smart design, and long-term performance that makes it a solid investment for riders who demand more from their kit.
With reinforced 2 mm tube walls, this boom takes on daily use, high load, and rough conditions without flinching. Whether you’re blasting freeride runs, catching air in bump & jump, or grinding through a wave session, it stays stiff, strong, and reliable.
What makes it heavy-duty
- 2 mm tube wall thickness = serious stiffness and impact resistance
- T8 aluminium monocoque frame = rugged and ready for seasons of use
- High-density EVA grip on the front arch resists abrasion and wear
- Anodised tail section = added protection against corrosion
- Performance bolts included for secure, long-lasting rigging
Tailored sizing for targeted performance
Each boom is sized and built to suit different sailing styles:
- 140–210 | 160–210 – 27 mm grip for freeride, wave, and bump & jump

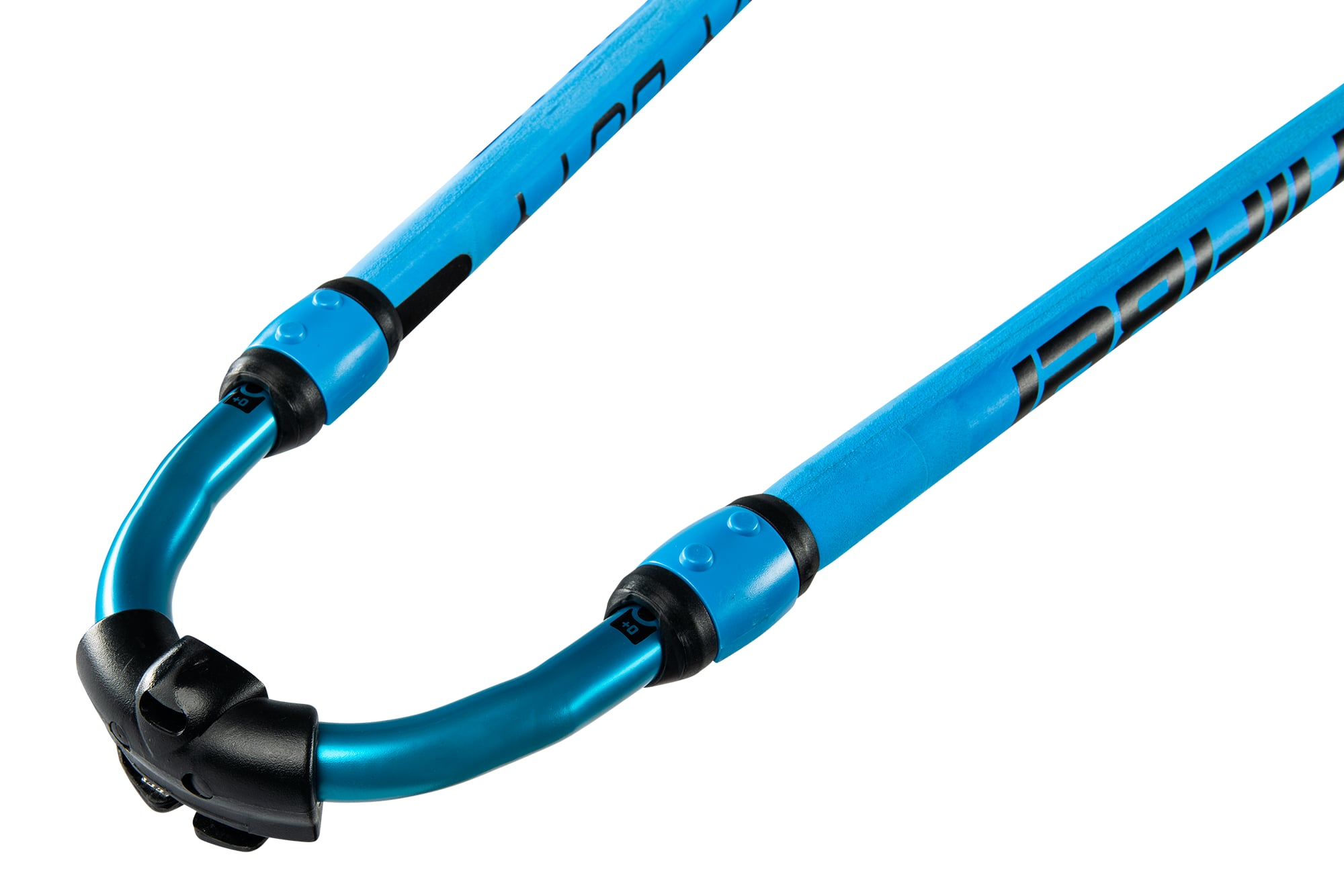

- 180–230 | 200–250 – 29 mm grip and extra-wide 18 cm tail to support deeper profile like race and freerace sails
Part of the Configure Me System
The Configure Me modular design makes setup, repair, and upgrades hassle-free:
- Swap tail or body sections in seconds—no tools needed
- Use one boom head across multiple boom sizes
- Compatible with both RDM and SDM masts (adapters included)
- Extend your gear’s lifespan and reduce waste
Model Specs
|
Model |
Grip Size |
Construction |
Weight |
|---|---|---|---|
|
140–190 |
27 mm |
T8 Aluminium |
2.67 kg |
|
160–210 |
27 mm |
T8 Aluminium |
2.81 kg |
|
180–230 |
29 mm |
T8 Aluminium |
3.35 kg |
|
200–250 |
29 mm |
T8 Aluminium |
3.59 kg |
For riders who go hard, season after season
From hardcore freeride to day-in, day-out school use, the Aluminium HD Monocoque offers the strength and control you can rely on. Heavier? A little. Worth it? Absolutely.
- Construction : Aluminium T8
- Grip Diameter : 29 mm
- Tube Wall Thickness :1.6 mm
- Boom Tail Inner Width :18 cm
- Stifness : / 10
1. BOOM CARE & PROTECTION
- Always store your boom in a protective bag
- Avoid leaving in direct sunlight when not in use
- Check all adjustment mechanisms before sailing
- Inspect front-end locking system regularly
- Protect from impact with other equipment
🔧 2. MAINTENANCE ESSENTIALS
- Clean these areas before each use:
- Front end locking mechanism
- Extension adjustment system
- Outhaul components
- Tail end pulleys
- Rinse with fresh water after sailing
⚙️ 3. ADJUSTMENT MANAGEMENT
- Release outhaul tension after sailing
- Never store boom at maximum extension
- Check all screws and bolts regularly
- Maintain clean adjustment tracks
- Lubricate moving parts when needed
1 Year Unconditional + 1 Year Conditional
Compatible Outhaul System For This Boom
Windsurf boom Knowledge
Ask the Windsurf Expert
Ben van der Steen dives into the topic to bring you a low-down on boom shape, & construction
Expert Advice
Windsurfing Booms FAQs
Your boom is your direct connection to the sail’s power – think of it as your windsurfing steering wheel.
Not sure which boom fits your style, or wondering how length and grip matter? You’re in the right place.
We’ve rounded up the most common boom questions – and clear, no-nonsense answers – to help you rig up with confidence.
Monocoque construction means the boom has a continuous tube design running from side to side through the head piece, rather than separate arms attached to the head.
This design provides superior rigidity, better load distribution, and enhanced durability compared to two-piece designs.
A C-shape boom features a curved profile with parallel tubes that follows a more natural hand position, reducing wrist strain and improving control compared to traditional straight booms.
- Carbon booms are approximately 30% lighter, provide superior rigidity, and offer better sail shape control, making them ideal for advanced riders.
- Aluminum booms are more impact-resistant, cost-effective, and forgiving, making them perfect for beginners
- Reduced Diameter Grips : measure around 26mm and are better for smaller hands and cold-water sailing, offering enhanced control. SDG
- Standard Diameter Grips are about 29mm, preferred by racers and those with larger hands, providing a traditional feel.
- V-Grips offer enhanced rigidity and a unique ergonomic feel but can cause blisters for some riders.
- Oval grips provide a balance between comfort and performance.
- Tapered designs vary in diameter along the boom length for optimized comfort and strength.
Your budget should focus on long-term value rather than initial cost.
- Entry-level aluminum booms range from €100-300,
- premium aluminum from €300-500,
- Carbon booms from €500-1000.
Consider that higher initial investment often means better performance and longevity.
Quality booms typically last 5+ years with proper care.
Modular Boom Concept
Think LEGO® for windsurfing. We've reimagined the traditional windsurfing boom, breaking it down into three essential pieces that work seamlessly together.
No more one-size-fits-all compromises – just smart, flexible solutions for every rider.
